In the era of advanced electronics and complex electrical systems, electromagnetic interference (EMI) poses a significant threat to the normal operation of connectors. EMI can cause signal distortion, data transmission errors, and even system malfunctions. Enhancing the electromagnetic interference resistance of connectors is crucial for ensuring the reliability and performance of electronic devices. Here are several effective strategies and methods to achieve this goal.

I. Selection of Shielded Connectors

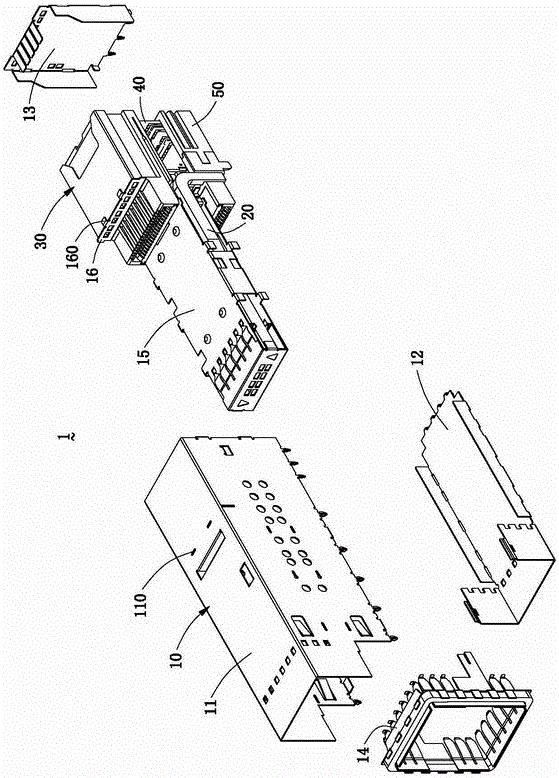

(A) Metal Enclosure Connectors

Connectors with metal enclosures are a common choice for EMI protection. The metal shell acts as a Faraday cage, effectively blocking external electromagnetic fields from penetrating the connector and interfering with the internal electrical signals. For example, in industrial control systems, where strong electromagnetic fields may be generated by motors and transformers, metal-enclosed circular connectors are widely used. These connectors are usually made of materials like aluminum alloy or stainless steel, which have good electrical conductivity and mechanical strength. The metal shell needs to be properly grounded to ensure that the induced electromagnetic charges can be safely conducted away, maximizing the shielding effect.

(B) Connectors with Shielding Layers

Some connectors are designed with built-in shielding layers, such as copper foil or braided wire shielding. In cable connectors, the shielding layer wraps around the signal wires, preventing electromagnetic waves from leaking out and also blocking external interference. When installing these connectors, it is essential to ensure that the shielding layer is continuously and firmly connected to the connector housing and the grounding system. For instance, in high-speed data transmission cables like HDMI or Ethernet cables, the shielding layer plays a vital role in maintaining signal integrity by reducing crosstalk and external EMI.

II. Structural Design Optimization

(A) Improving Electrical Contact

Good electrical contact within the connector is fundamental for EMI resistance. Poor contact points can act as antennas, radiating electromagnetic energy or picking up interference signals. To enhance contact quality, connectors can be designed with multiple contact points or spring-loaded contacts. For example, in board-to-board connectors, using a high-density pin layout with gold-plated contacts can reduce contact resistance and improve electrical conductivity, minimizing the potential for electromagnetic radiation due to poor contact. Additionally, ensuring proper alignment and tight mating during connector installation also helps maintain optimal electrical contact.

(B) Reducing Signal Reflection

Signal reflection occurs when there are impedance mismatches in the connector or the connected circuit, which can lead to electromagnetic radiation. Designing connectors with consistent impedance characteristics throughout the signal path can effectively reduce reflection. This can be achieved through careful selection of materials, precise control of the connector's geometric dimensions, and proper termination techniques. For high-frequency applications, such as 5G communication equipment, connectors with impedance-matched designs are essential to minimize signal reflection and subsequent EMI.

III. Application of Filtering Technologies

(A) Adding Filtering Components

Filtering components, such as common-mode chokes, ferrite beads, and capacitors, can be integrated into connectors to suppress EMI. Common-mode chokes are effective in blocking common-mode interference signals, which are often the main source of EMI in data transmission systems. Ferrite beads can absorb high-frequency noise by converting electromagnetic energy into heat. Capacitors, on the other hand, can bypass high-frequency interference signals to the ground. For example, in power connectors, adding capacitors near the power input terminal can filter out high-frequency ripples and noise, improving the power quality and reducing EMI emissions.

(B) Designing Filtered Connectors

Some manufacturers produce connectors with built-in filtering circuits. These filtered connectors integrate multiple filtering components in a compact design, providing comprehensive EMI suppression. They are especially suitable for applications where space is limited and high-level EMI protection is required, such as in aerospace and military electronics. The filtering circuits in these connectors are carefully designed to match the specific electrical characteristics of the connected devices, ensuring effective EMI suppression without affecting normal signal transmission.

IV. Rational Wiring and Layout

${"type":"load_by_key","id":"","key":"banner_image_0","width":0,"height":0,"image_type":"search","pages_id":"4083610243732738","genre":"技术文章","artifact_key":4083610243732994}$

(A) Separating Signal and Power Lines

In electrical systems, power lines can generate significant electromagnetic fields, which may interfere with signal lines. To minimize this interference, it is crucial to separate signal and power lines as much as possible during wiring. When using connectors to connect different components, ensure that signal connectors and power connectors are placed at a sufficient distance from each other. Additionally, routing signal lines and power lines in different directions or using shielding measures between them can further reduce electromagnetic coupling.

(B) Avoiding Parallel and Crossed Wiring

Parallel or crossed wiring of signal lines can lead to crosstalk, where electromagnetic fields from one line interfere with adjacent lines. When designing the wiring layout around connectors, avoid running signal lines in parallel for long distances. If crossing is inevitable, ensure that the lines cross at right angles to minimize electromagnetic coupling. Proper wiring management not only improves the anti-EMI performance of connectors but also simplifies the overall electromagnetic compatibility (EMC) design of the electronic system.

V. Material Selection and Sealing

(A) Choosing Anti-EMI Materials

Selecting materials with good electromagnetic shielding properties is essential for connector design. In addition to metals, some conductive polymers and composites can also be used for connector components. For example, conductive plastics filled with carbon fibers or metal particles can provide certain electromagnetic shielding capabilities while reducing the weight of the connector. These materials can be used for connector housings or insulators, contributing to the overall EMI resistance of the connector.

(B) Ensuring Proper Sealing

A well-sealed connector can prevent external electromagnetic waves from entering through gaps. In environments with strong EMI sources, such as near radio transmitters or high-voltage power lines, connectors with high sealing performance are required. Rubber gaskets or O-rings are commonly used to seal the interfaces between the connector housing and the cables or mating components. This not only improves the EMI resistance but also protects the connector from dust, moisture, and other environmental factors that may affect its performance.

Improving the electromagnetic interference resistance of connectors requires a comprehensive approach that combines proper component selection, optimized design, advanced filtering technologies, rational wiring, and suitable material usage. By implementing these strategies, engineers can effectively enhance the EMC performance of connectors, ensuring the stable and reliable operation of electronic devices in various electromagnetic environments. Whether in consumer electronics, industrial automation, or high-tech fields, attention to connector EMI resistance is key to maintaining the integrity and functionality of electrical systems.
